Technical parameters and product overview:

·Rated current: 2A AC/DC

·Rated voltage: 100V AC/DC

·Suitable temperature: -40 ℃~125 ℃ (including the temperature rise when current passes through)

·Contact resistance: Initial value ≤ 1m Ω, after environmental testing ≤ 30m Ω

·Insulation resistance: ≥ 1000M Ω

·Voltage endurance: AC 1000V/minute

·Waterproof rating: IP67K

·PIN needle antioxidant level: neutral salt spray test 96H, no oxidation blackening on the surface

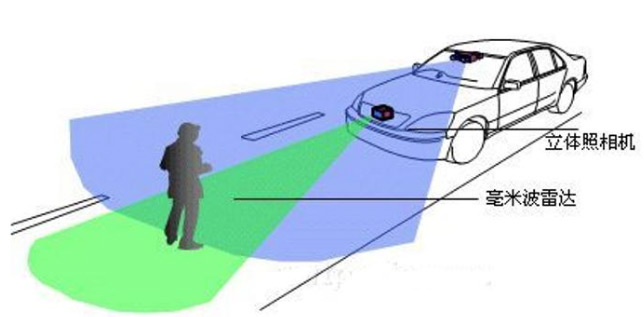

>Automotive Millimeter Wave Radar Sensor Connector

>Provide a full range of customization options

Provide 24Ghz, 77Ghz, 79Ghz full range custom.

>Hot runner process for more stable molding

Hot Runner molding process

>No welding technology, automation has more cost advantages Press fit technology

>Tutoring material selection, flatness control Provide material option, keep flatness

Compliant with RoHS standards

·PIN needle insert molding

·Male female connector interlock

·Female terminal and housing interlock
